XRDCALC

Builtin Mineral XRD Database

XRDCALC is a Windows powder diffraction utility for identifying phases, calculating and plotting powder diffraction data. XRDCALC calculates d-spacings and two-theta and plots digital scan files, two-theta or d-spacing vs intensity stick plots and peak profiles. Designed for mineral powder diffraction data.

Summary of Features

Windows XP, Vista
800x600, 16 bit color or higher
Converts between two-theta and d-spacings
Import tab delimited ASCII, Sietronics (.cpi), DBW (.dat) and ScanPI (.dat) Files
Plot Sietronics (.cpi), DBW (.dat) and ScanPI (.dat) Scan Files
Digital scan file conversion utility converts between popular formats
Refine and filter peaks
Automatic and manual search/match
Quantitative analysis using area under peaks
Plot digital scan files
Extract peaks from scan files
Plot two-theta and d-spacing vs intensity stick plots and peak profiles
Intensity conversion to percentage
Choice of labels and fonts
Drawing and text tools
Zoom plot
Adjustable stick width
Copy graphs to the clipboard or save as bitmap files
Sort data numerically or alphabetically
Spreadsheet with multiple document interface, clipboard support, search/replace and undo
Color or BW printing
With builtin mineral XRD database for all minerals.
Strongest three d-spacings and mineral name. Search for d1, d2 and d3
Work with custom project databases for collections, research or industry
Print search results
Html help system
Free ftp internet updates builtin

Spreadsheet

Data can be sorted by d-spacing, two-theta, intensity or crystal name. Convert between two-theta and d-spacing. Calculations are solved using wavelengths selected from a list or entered via the keyboard. There is numeric formatting of two-theta and d-spacing, a multiple document interface, search/replace and clipboard support. Spreadsheet functions include extract and refine peaks and search/match.

Plot Scan Files

Plots Sietronics (.cpi), DBW (.dat) and ScanPI (.dat) scan files as digital xrd pattern plots. Choice of fonts, colors and labels. Extracts peaks and performs search/match. Plot overlay scan file.

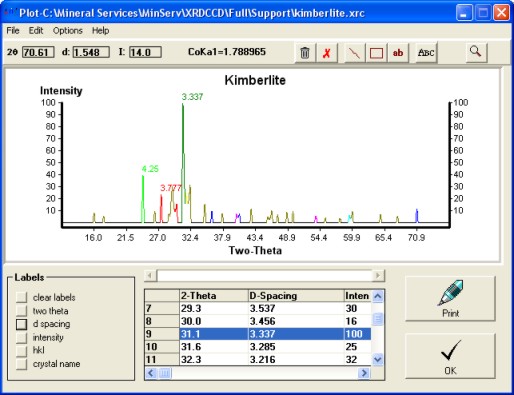

Stick Plots and Peak Profiles

Select from two-theta vs intensity or d-spacing vs intensity stick plots or peak profiles. The scale can be calculated automatically or set manually. Choose from d-spacing, two-theta, intensity, crystal name, code or user specified labels. Labels can be placed on any number of sticks. Auto color assigns a different color to each crystal. stick widths are adjustable. Sticks can be marked in different colors and linestyles. Normal or extra wide graphs. Peak profiles plots peaks as curves.

Printing

Print stick plots, peak profiles or scan files. Graphs can be customized with labels and graph titles.

Mineral XRD Database

Built in Mineral XRD Database for all minerals. With strongest 3 d-spacings and mineral name. Search 3 strongest d-spacings and mineral name and print search results.

XRD4

Full Version with Database Price: AU$385.00
