Petrographic Microscopes

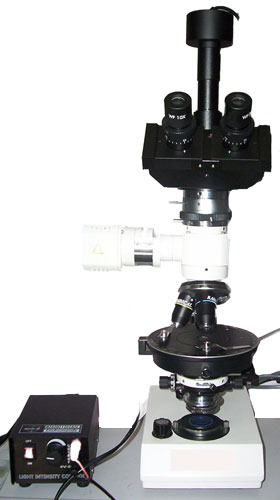

Trinocular Ore Microscope with USB Camera Pictured
- Option Binocular or Trinocular Viewing Head
- Slide Out Bertrand Lens
- Analyzer 360 Degree Rotatable, Swing Out
- Coarse and Fine Focussing Knobs
- 130mm, 360 Degree Graduated Rotating Stage, Lockable
- Eyepieces: WF 18mm 10x, Cross-hair, 10x Micrometer
- Quadruple Nosepiece
- Strainfree Semi Plan Objectives: 4X, 10X, 40X, Infinty Plan Objectives 4X, 10X, 20X, 40X with Transmitted Model
- NA 1.25 Condensor
- Compensators : Gypsum 1λ, Mica 1/4λ plus Quartz Wedge with Transmitted Model
- Filter : Blue plus Green with Ore Microscope
- 6V/20W Halogen lamp with adjustable brightness
- 110/220V power supply
- Video/Photo adapter (WITH TRINOCULAR VERSION)
- Cleaning Cloth
- Dust Cover
- Instruction Manual
Options
- Binocular or Trinocular Head
- Mechanical Stage
- USB or TV Camera
Allow 3-4 weeks for delivery from factory
Any import taxes/duties are paid by the purchaser.
Prices
Reflected/Transmitted Ore
Microscope (Shown Above)
| Trinocular Viewing Head | AU$1499.00 | |
| Binocular Viewing Head | AU$1090.00 |
Petrographic Microscope
| Trinocular Viewing Head | AU$1395.00 | |
| Binocular Viewing Head | AU$1095.00 |
Options
| USB Camera 640x480 | AU$99.00 | |
| USB Camera 1.3MP | AU$199.00 | |
| USB Camera 3MP | AU$299.00 | |
| USB Camera 5MP | AU$459.00 | |
| TV Camera | AU$199.00 | |
| Mechanical Stage | AU$55.00 |
Email:
support@geologynet.com for shipping costs
